Configuration Schema

The default input for a component configuration is a JSON text area.

If you define a JSON schema, we are able to display a nice form and let the user to fill the JSON using a set of defined inputs.

Using the configuration schema also allows us to validate the user input on frontend.

Creating Schema

JSON schemas are well documented on the json-schema.org website.

We use RJSF (React JSON Schema Form) for rendering schemas into forms. The schema supports standard JSON Schema properties as well as custom extensions documented in UI Element Examples and Sync Action Examples.

Supported Formats

The following format values are supported in property definitions. The Type column shows the underlying JSON Schema type; italicized entries are descriptive notes, not literal type values.

Format	Type	Description
password	string	Masked password input with show/hide toggle
textarea	string	Multi-line text area
editor	string/object	CodeMirror code editor (JSON, SQL, Python, etc.)
date	string	Date picker input
checkbox	boolean	Checkbox toggle
radio	string	Radio button group (requires enum)
trim	string	Standard text input with automatic whitespace trimming
grid / grid-strict	object	Responsive grid layout for grouped fields
tabs / tabs-top / categories	object	Tabbed layout for grouped fields
table	array	Editable table for arrays of objects
info	any JSON Schema type	Static informational alert (uses title as message; Keboola UI extension)
ssh-editor	object	SSH key/form editor
sync-action	Keboola UI button widget	Action button triggering a sync action (not a JSON Schema type)
test-connection	Keboola UI button widget	Connection test button (not a JSON Schema type)

Supported Options

The following options keys can be used in property definitions:

Option	Description
options.async	Dynamic option loading via sync actions. See Sync Action Examples.
options.dependencies	Conditional field visibility based on other field values. See Dynamic Options.
options.tags	Enable tag-style input for multi-select arrays
options.creatable	Allow user-created values in select dropdowns
options.tooltip	Help text displayed as a tooltip icon next to the field label. Supports Markdown syntax.
options.documentation	Documentation link rendered as a book icon next to the field label. Value: { "link": "https://...", "tooltip": "optional hover text" }
options.enum_titles	Display labels for enum values
options.hidden	Hide the field from the UI
options.collapsed	Start object sections in collapsed state
options.disable_collapse	Prevent collapsing of object sections
options.enabled	Set to false to disable a field
options.grid_columns	Number of grid columns (1–12) in grid/grid-strict layouts
options.grid_break	Force a new row in grid layouts
options.editor	CodeMirror editor options: mode, lineNumbers, lint, input_height
options.input_height	Height for textarea fields (e.g., "100px")
options.inputAttributes	HTML input attributes (e.g., placeholder)
options.only_keys	SSH editor variant showing only key fields
options.disable_array_add	Disable adding items to arrays
options.disable_array_delete	Disable removing items from arrays
options.disable_array_reorder	Disable reordering items in arrays

Developing and Previewing Schemas

When building or iterating on a configuration schema, you need a way to see how your JSON schema renders as a form. The recommended approach is to use the live schema editor built into the Keboola UI.

Live Schema Editor in Keboola UI (Recommended)

The Keboola UI includes a built-in live schema editor that lets you edit a JSON schema and immediately see the rendered form side by side. This is the fastest way to iterate on your schema during development.

How to use it

1. Open any component configuration page in the Keboola UI (e.g., https://connection.keboola.com/admin/projects/<project-id>/components/<component-id>/<config-id>).
2. Press Ctrl+D (or Alt+D / Option+D on Mac) while on the configuration page.
3. Use the arrow button in the panel toolbar to move the editor to the left or right side of the screen.
4. Click the checkmark button to apply the schema override for the current browser session.
5. Press Ctrl+D again (or click the close button) to hide the editor.

This editor uses the same RJSF rendering library as the production UI, so what you see in the editor is exactly what end users will see. The override is local to your browser session — it does not change the schema registered in the Developer Portal.

Generating Schemas with AI Kit

You can also use the build-component-ui skill from the Keboola AI Kit to generate or refine configuration schemas using AI. The skill is an expert agent specialized in:

• Designing configSchema.json and configRowSchema.json structures
• Using options.dependencies for conditional field visibility
• Choosing the right UI elements and formats
• Setting up sync actions for dynamic dropdowns and test connection buttons

To use it, install the Keboola AI Kit as a Claude Code plugin and invoke the @build-component-ui agent. Describe your component’s configuration needs and it will produce a complete schema following Keboola conventions and best practices.

Example

Let’s assume your component accepts the following configuration:

{
    "username": "foo",
    "#password": "baz",
    "dateFrom": "yesterday",
    "dateTo": "today"
}

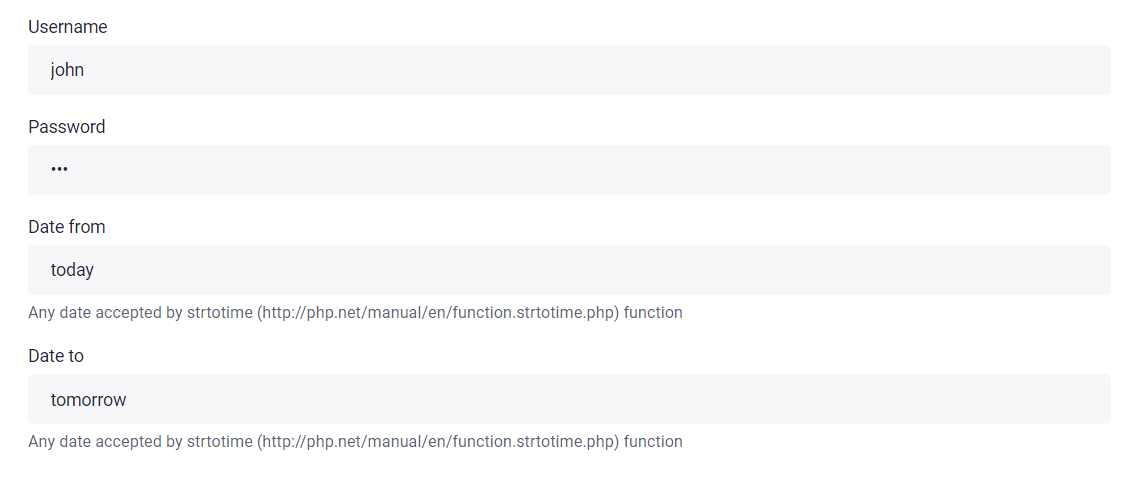

This looks like an appropriate form:

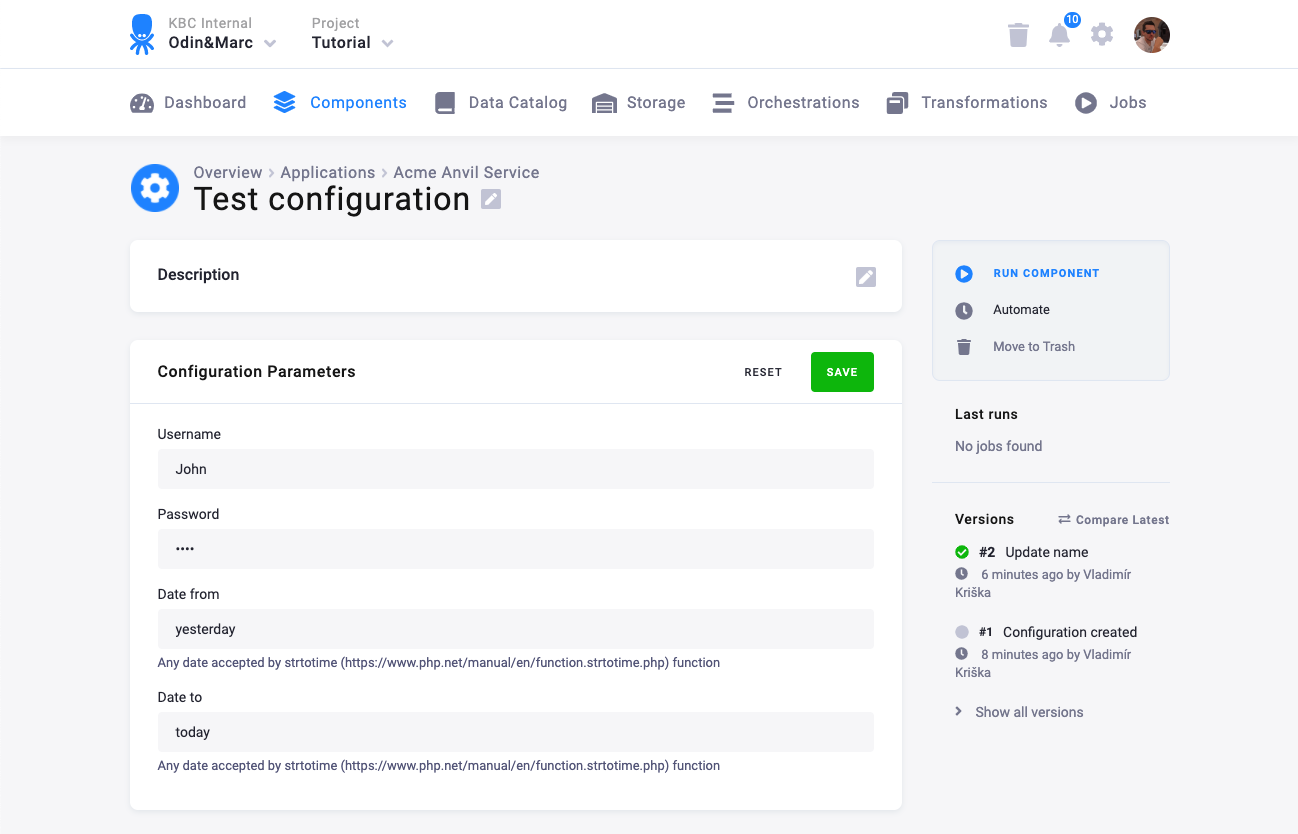

The form above can be created using this JSON Schema:

{
    "title": "Parameters",
    "type": "object",
    "required": [
        "dateFrom",
        "dateTo",
        "username",
        "#password"
    ],
    "properties": {
        "username": {
            "title": "Username",
            "type": "string",
            "minLength": 1,
            "default": "",
            "propertyOrder": 1
        },
        "#password": {
            "title": "Password",
            "type": "string",
            "format": "password",
            "minLength": 1,
            "default": "",
            "propertyOrder": 2
        },
        "dateFrom": {
            "title": "Date from",
            "type": "string",
            "description": "Any date accepted by strtotime (https://www.php.net/manual/en/function.strtotime.php) function",
            "minLength": 1,
            "default": "",
            "propertyOrder": 3
        },
        "dateTo": {
            "title": "Date to",
            "type": "string",
            "description": "Any date accepted by strtotime (https://www.php.net/manual/en/function.strtotime.php) function",
            "minLength": 1,
            "default": "",
            "propertyOrder": 4
        }
    }
}

Links Example

Note

The links feature is deprecated. Use options.documentation instead (see Supported Options).

If you want to provide links to external resources, use options.documentation to add a clickable documentation icon next to the field label:

{
    "dateFrom": {
        "title": "Date from",
        "type": "string",
        "description": "Any date accepted by the strtotime function",
        "options": {
            "documentation": {
                "link": "https://www.php.net/manual/en/function.strtotime.php",
                "tooltip": "strtotime Documentation"
            }
        }
    }
}

Legacy links feature (deprecated)

The old links property is no longer supported. If you have existing schemas using it, migrate to options.documentation:

{
    "title": "Parameters",
    "type": "object",
    "required": [
        "dateFrom",
        "dateTo",
        "username",
        "#password"
    ],
    "properties": {
        "username": {
            "title": "Username",
            "type": "string",
            "minLength": 1,
            "default": "",
            "propertyOrder": 1
        },
        "#password": {
            "title": "Password",
            "type": "string",
            "format": "password",
            "minLength": 1,
            "default": "",
            "propertyOrder": 2
        },
        "dateFrom": {
            "title": "Date from",
            "type": "string",
            "description": "Any date accepted by the strtotime function",
            "minLength": 1,
            "default": "",
            "propertyOrder": 3,
            "links": [
                {
                    "rel": "strtotime Documentation",
                    "href": "https://www.php.net/manual/en/function.strtotime.php"
                }
            ]
        },
        "dateTo": {
            "title": "Date to",
            "type": "string",
            "description": "Any date accepted by the strtotime function",
            "minLength": 1,
            "default": "",
            "propertyOrder": 4,
            "links": [
                {
                    "rel": "strtotime Documentation",
                    "href": "https://www.php.net/manual/en/function.strtotime.php"
                }
            ]
        }
    }
}

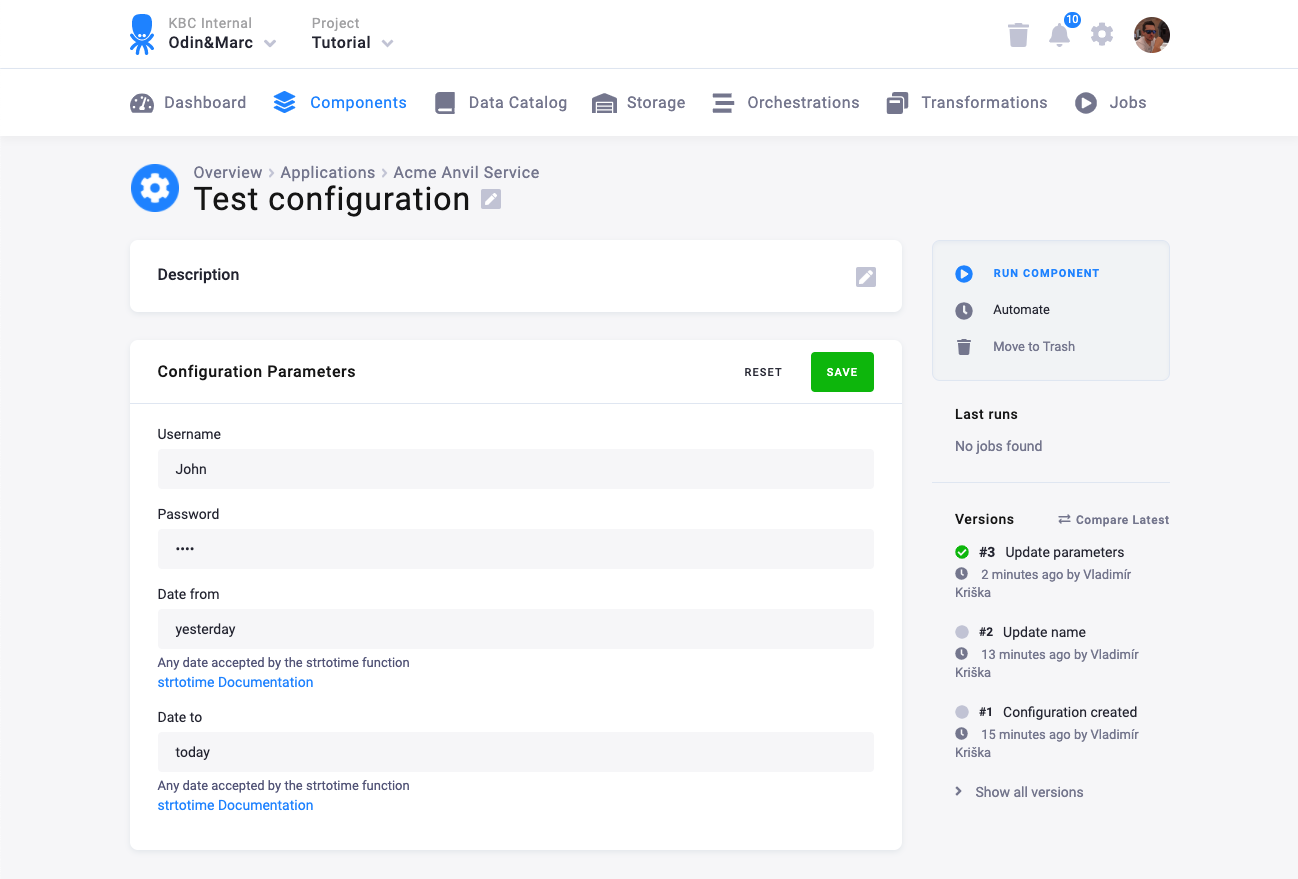

Which renders like this:

Legacy Features

The following features are still supported for backwards compatibility but have preferred alternatives:

• enumSource / watch — Dynamic enum population based on other field values. For new schemas, prefer options.async with sync actions instead. See Sync Action Examples.

Deprecated Features

The following features from the legacy JSON Editor library are no longer supported:

• links — Clickable links on field descriptions. Use options.documentation with link and optional tooltip instead.
